[ Installation Video ]
|
You will use the original screw
but you will need:
2 - 8-32 Wing Nuts (about $.40ea)
6 - #8 Flat Washers (about $.10ea)
( Only using 2 washers will work fine. Use 1 per side )
|

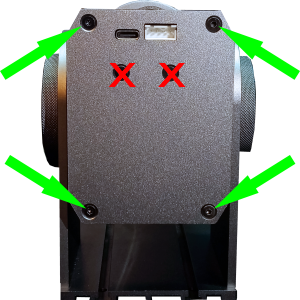

Take the Back Cover Off
by Removing the 4 Corner Screws
( No Need to Remove the 2 Center Screws )
Gently lay the cover to the side being
careful of the wires and circuit board.
|
|
|

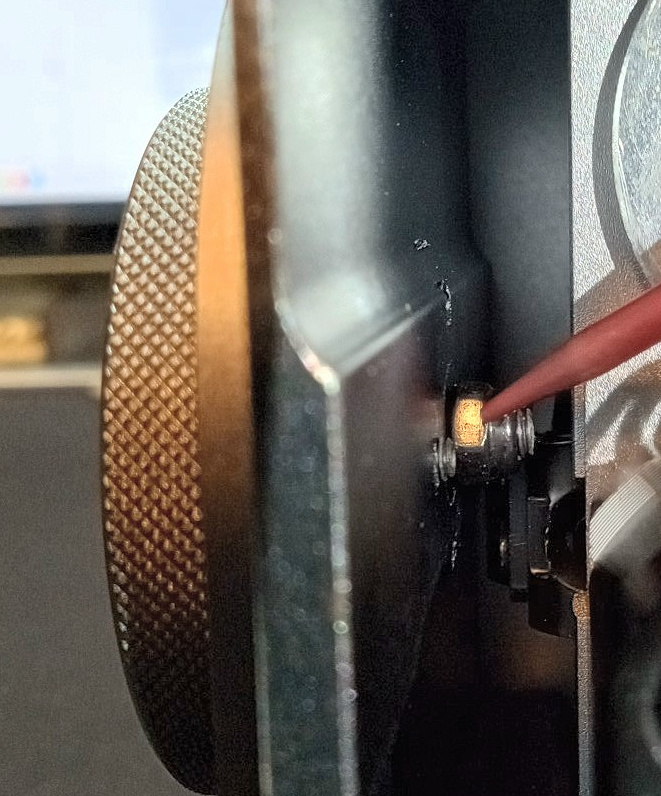

Remove the Nylon Lock Nut
from the angle adjustment center screw.
Use a pair of needle nose pliers or a 7mm wrench
to hold the nut while unscrewing the bolt with
the 3mm hex key for the last time.
[ Click On the Image for a Better View ]
|

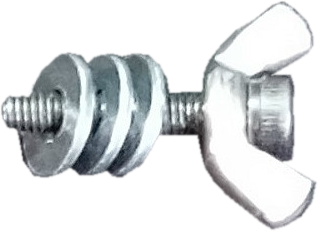

Thread the Wing Nut on the Screw
and Tighten it hard with the 3mm Hex Key.
|
|
|
Put 3 Flat Washers on the Screw
and thread it back into the Rotary.
Repeat these steps for the other side.
Then put the rear cover back on.
You are Done!
Enjoy!
|
|
|
|
